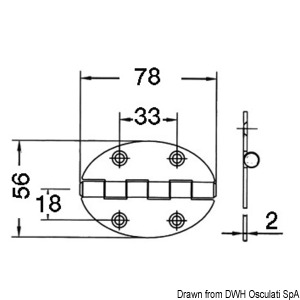

Oval hinge 78x56 mm stud mounting 2 mm

Go to the full master item: Oval hinges

ade of mirror polished stainless steel OVAL TYPE series; semi-embedded central axis; 270° opening.

(Select the desired features to view the corresponding item)

(Select the desired features to view the corresponding item)

UOM: PZ

Height: 6 cm

Weight: 0,08 kg

Width: 8 cm

Cubage: 96 cm³

Length: 2 cm

ade of mirror polished stainless steel OVAL TYPE series; semi-embedded central axis; 270° opening.

Item	Variant	mm	Thickness mm
38.450.01	With semi-embedded knuckle and screw mounting	35x51	1,5
38.450.02	With semi-embedded knuckle and screw mounting	48x67	2
38.450.03	With semi-embedded knuckle and screw mounting	56x78	2
38.450.53	With semi-embedded knuckle and screw mounting	78x56	3
38.451.01	With overhanging knuckle	78x56	2
