Master catalogueElectrical equipment14 - Electrical materialsMARINCO sockets, plugs and shore power cablesMARINCO power sockets and plugsMarinco bipolar monophase 3-wire plug

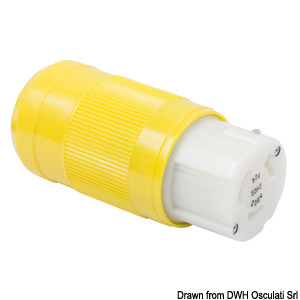

Marinco bipolar monophase 3-wire plug

Go to the full master item: MARINCO power sockets and plugs

CODE 14.587.03

100% watertight; made of thermopolymer with high resistant glass, nickel plated brass contacts.

Product Specifications

(Select the desired features to view the corresponding item)

Type

Description

A

V

Product Specifications

(Select the desired features to view the corresponding item)

Type

Description

A

V

UOM: PZ

Height: 10 cm

Weight: 0,27 kg

Width: 15 cm

Cubage: 1.500 cm³

Length: 10 cm

100% watertight; made of thermopolymer with high resistant glass, nickel plated brass contacts.

Master items

Item	Type	Description	A	V
14.302.00	3-WIRE BIPOLAR MONOPHASE	AISI 316 stainless steel socket, male contacts	16	230
14.301.00	3-WIRE BIPOLAR MONOPHASE	Male socket with rear protection for “Valox” resin cables	16	230
14.303.00	3-WIRE BIPOLAR MONOPHASE	Male contact socket, round front with rear protection for “Valox” resin cables	16	230
14.305.00	3-WIRE BIPOLAR MONOPHASE	Plug to couple with sockets 14.301/302/303.00, female contacts	16	230
14.103.00	3-WIRE BIPOLAR MONOPHASE	Yellow watertight PVC cap for 14.305.00	-	-
14.305.10	3-WIRE BIPOLAR MONOPHASE	Dock side plug, male contact	16	230
14.102.00	3-WIRE BIPOLAR MONOPHASE	Yellow watertight PVC cap for 14.305.10	-	-
14.487.03	3-WIRE BIPOLAR MONOPHASE	AISI 316 stainless steel socket, male contacts	32	230 (50 A at 110 V)
14.634.30	3-WIRE BIPOLAR MONOPHASE	Male “Valox” resin socket	32	230 (50 A at 110 V)
14.587.03	3-WIRE BIPOLAR MONOPHASE	Plug to couple with socket 14.487.03, female contacts	32	230 (50 A at 110 V)
14.587.04	4-WIRE HEAVY DUTY THREE-PHASE	Yellow watertight PVC cap for 14.587.09	-	-
14.636.10	3-WIRE BIPOLAR MONOPHASE	Dock side plug, male	32	230 (50 A to 125 V)
14.771.70	3-WIRE BIPOLAR MONOPHASE	Yellow watertight PVC cap for 14.636.10	-	-
14.487.01	4-WIRE THREE-POLE	AISI 316 stainless steel socket, male contacts	50	125/250
14.587.01	4-WIRE THREE-POLE	Plug to couple with socket 14.487.01, female contacts	50	125/250
14.487.06	3-WIRE HEAVY DUTY BIPOLAR MONOPHASE	AISI 316 stainless steel socket, male contacts	63	230
14.587.06	3-WIRE HEAVY DUTY BIPOLAR MONOPHASE	Plug to couple with socket 14.487.06, female contacts	63	230
14.487.09	4-WIRE HEAVY DUTY THREE-PHASE	AISI 316 stainless steel socket, male contacts	63	230
14.587.09	4-WIRE HEAVY DUTY THREE-PHASE	Plug to couple with socket 14.487.09, female contacts	63	230
14.103.01	4-WIRE HEAVY DUTY THREE-PHASE	Watertight cap to seal Marinco plugs. For plugs 14.305.00 + 14.103.00. 16-30 Amp	-	-
14.103.02	4-WIRE HEAVY DUTY THREE-PHASE	Watertight cap to seal Marinco plugs. For plugs 14.587.03-06 + 14.587.04. 32-63 Amp	-	-
