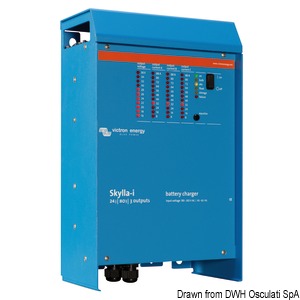

VICTRON Skylla-i 24 V microprocessor battery charger

- Synchronised operation for multiple batteries in parallel via CANbus function;
- Battery voltage detection to compensate for voltage losses caused by cable resistance;
- The right amount of charge: variable absorption time.
- BatterySafe mode: preventing damage due to excessive gassing.
- Less maintenance and ageing when the battery is not needed: storage mode;
- Temperature compensation to extend the battery life.
- 185-265 VAC supply.
- Provision for possible Li-ion battery charger (Life 904).

Master items

Item Model Type V output/ input Max charging current A Number of outputs Recommended for batteries A·h mm Price
Skylla-i 24/80 28,8 80 3 400/800 402x250x140 8 1.769,00 €/PZ
PZ
Order Quantity

Skylla-i 24/80 28,8 80+4 1+1 400/800 402x250x140 8 1.409,00 €/PZ
PZ
Order Quantity

Skylla-i 24/100 28,8 100 3 500/1000 402x250x140 8 2.144,00 €/PZ
PZ
Order Quantity

Skylla-i 24/100 28,8 100+4 1+1 500/1000 402x250x140 8 1.704,00 €/PZ
PZ
Order Quantity

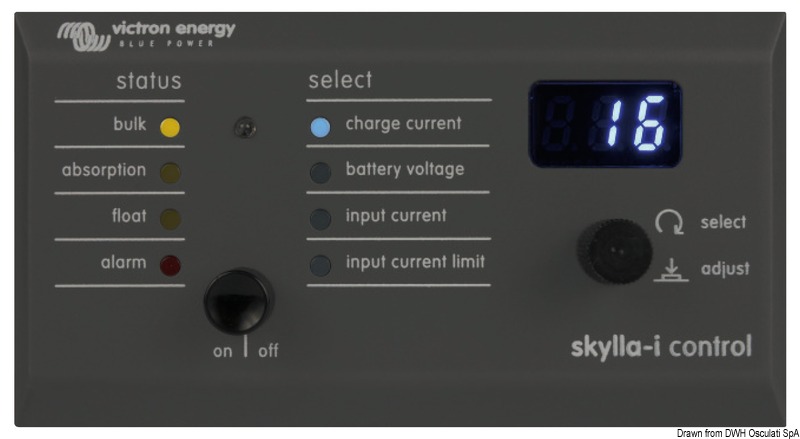

14.270.38 SKYLLA-I control panel. It monitors the charge level and enables to reduce outlet current if the inlet power is low. Cable RJ45 required.
14.270.47 RJ45 7-m cable
14.100.06 Battery monitor
* 2 independent outputs: first full charge 80/100 A, second charge 4 A dedicated to starting batteries.
