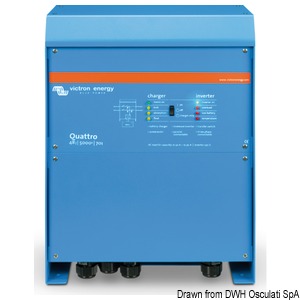

VICTRON Quattro combo system - Battery charger + Inverter

VICTRON Quattro combo system - Battery charger + Inverter

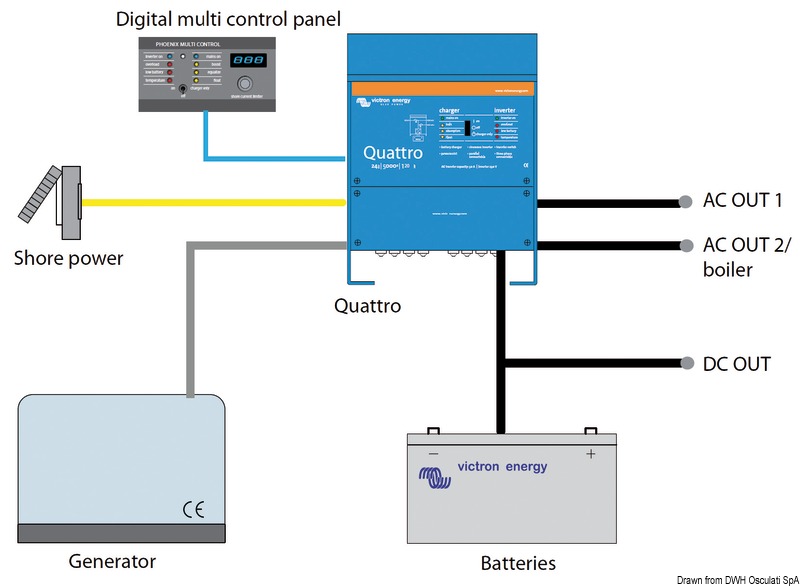

Same functions of the Multiplus system, but it can be connected to 2 independent AC sources (eg. dock and generator or 2 generators) and the Quattro system will automatically connect to the active source.

Master items

View in catalogue
Item Type AC Input (2x) Power supply V-DC Inverter - Power V-A Inverter - V-AC Output Battery charger - charging voltage Battery charger - Battery charging current A Number of outputs mm Price
https://www.osculati.com/SupplyImages/WF-0007/TH_14.268.10.jpg
14.268.10
12 / 3000 / 120 187/265 9,5 - 17 3000 120 14,4 120±4 1+1* 362 x 258 x 218 19 2.504,00 €/PZ
PZ
Order Quantity

Online orders are reserved for professional customers

Added to cart

of the item


Go to cart
https://www.osculati.com/SupplyImages/WF-0007/TH_14.268.10.jpg
14.268.11
24 / 3000 / 70 187/265 19 - 33 3000 70 28,8 70±4 1+1* 362 x 258 x 218 19 2.404,00 €/PZ
PZ
Order Quantity

Online orders are reserved for professional customers

Added to cart

of the item


Go to cart
https://www.osculati.com/SupplyImages/WF-0007/TH_14.268.10.jpg
14.268.13
24 / 5000 / 120 187/265 19 - 33 5000 120 28,8 120±4 1+1* 444 x 328 x 240 30 3.064,00 €/PZ
PZ
Order Quantity

Online orders are reserved for professional customers

Added to cart

of the item


Go to cart
https://www.osculati.com/SupplyImages/WF-0007/TH_14.268.10.jpg
14.268.14
24 / 8000 / 200 187/265 19 - 33 8000 200 28,8 200±4 1+1* 470 x 350 x 280 41 3.829,00 €/PZ
PZ
Order Quantity

Online orders are reserved for professional customers

Added to cart

of the item


Go to cart
https://www.osculati.com/SupplyImages/WF-0007/TH_14.268.10.jpg
14.268.20 NEW
12 / 5000 / 120 180/270 9,5 - 17 5000 230 14,4 220 1+1* 470 x 350 x 280 34 3.899,00 €/PZ
PZ
Order Quantity

Online orders are reserved for professional customers

Added to cart

of the item


Go to cart

* Second 4A outlet dedicated to the starting batteries.
14.270.32 Digital Multicontrol. Control panel for both inverter and battery charger. Possibility to manage the inlet current when switching from dock supply to generator supply. It can manage parallel and three-phase devices. It can be configured with several VE-BUS remote systems. Cable RJ45 needed.
14.100.06 Battery monitor.
14.270.47 7-m RJ45 cable for 14.270.39
14.270.39 VE-Bus --> USB interface for computer connection.
** Only available on order.
