Low Profile Cable Gland SCANSTRUT

Low Profile Cable Gland SCANSTRUT 14.177.01/02/03/04

It offers perfect watertightness (IP68) for cable passing and lets the cable pass without disassembling end connectors, if any. Threaded holes for easy installation, it can disassembled endless times. Each piece is supplied with a choice of bored or to-be-bored seals for easy and flexible use.
The overall height of the Low Profile range is 70% shorter in comparison with the standard range stuffing boxes for a cleaner and more refined result. Vertical and horizontal installation.
100% watertight. Marine sealant not needed.
Packed in a convenient display blister.

Master items

View in catalogue

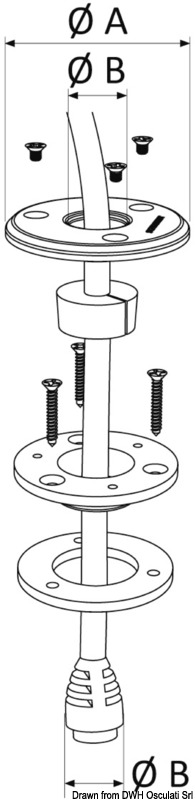

Item Variant Cable Ø mm Connector B max Ø Ø A mm Price

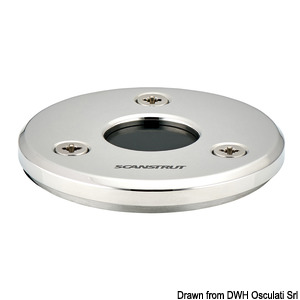

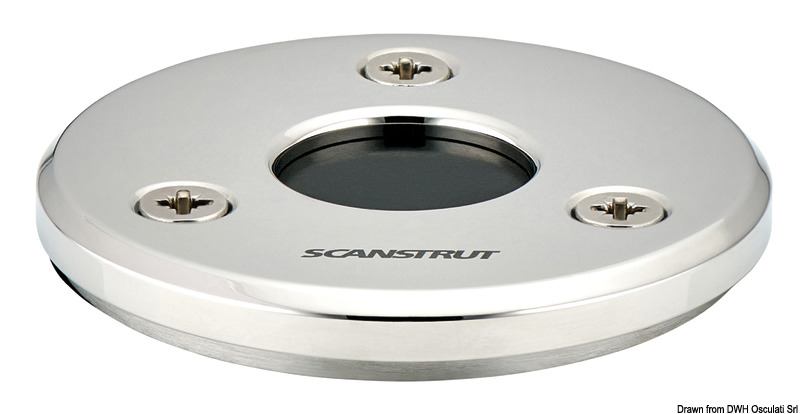

Low Profile SS stuffing box Ø 2/8 mm
14.177.01
SS 2-8 16 49,9 from 103,58 € 84,90 €/PZ
PZ
Order Quantity

Online orders are reserved for professional customers

Added to cart

of the item


Go to cart
Low Profile SS stuffing box Ø 4/9 mm
14.177.02
SS 4-9 21 60,7 from 121,88 € 99,90 €/PZ
PZ
Order Quantity

Online orders are reserved for professional customers

Added to cart

of the item


Go to cart
Low Profile SS stuffing box Ø 9/14mm Ø 21 B
14.177.03
SS 9-14 21 60,7 from 121,88 € 99,90 €/PZ
PZ
Order Quantity

Online orders are reserved for professional customers

Added to cart

of the item


Go to cart
Low Profile SS stuffing box Ø 9/14mm Ø 30 B
14.177.04
SS 9-14 30 75,6 from 145,79 € 119,50 €/PZ
PZ
Order Quantity

Online orders are reserved for professional customers

Added to cart

of the item


Go to cart

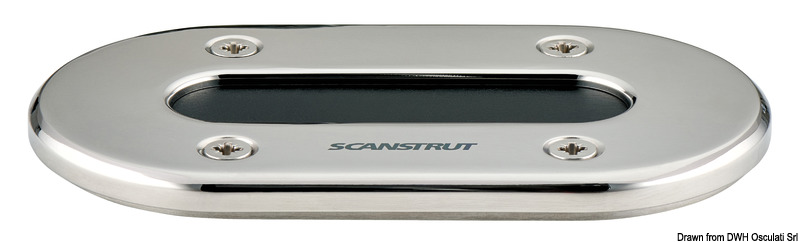

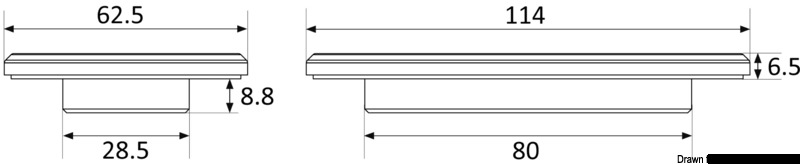

Low Profile SS stuffing box Ø up to 15 mm
14.177.05
SS fino a 15 - - from 261,69 € 214,50 €/PZ
PZ
Order Quantity

Online orders are reserved for professional customers

Added to cart

of the item


Go to cart

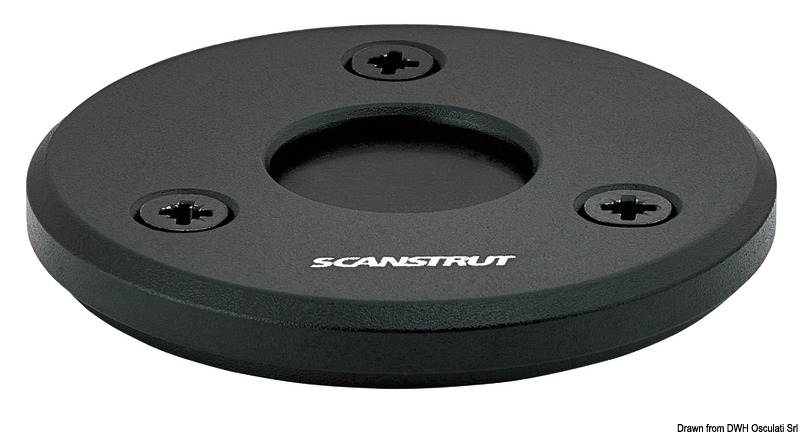

Low Profile aluminium black stuffing box Ø 2/8mm
14.177.11
Black anodized aluminium 2-8 16 49,9 from 88,94 € 72,90 €/PZ
PZ
Order Quantity

Online orders are reserved for professional customers

Added to cart

of the item


Go to cart
Low Profile aluminium black stuffing box Ø 4/9mm
14.177.12
Black anodized aluminium 4-9 21 60,7 from 102,36 € 83,90 €/PZ
PZ
Order Quantity

Online orders are reserved for professional customers

Added to cart

of the item


Go to cart
Profile alu black stuffing box Ø 9/14mm Ø 21 B
14.177.13
Black anodized aluminium 9-14 21 60,7 from 102,36 € 83,90 €/PZ
PZ
Order Quantity

Online orders are reserved for professional customers

Added to cart

of the item


Go to cart
Profile alu black stuffing box Ø 9/14mm Ø 30 B
14.177.14
Black anodized aluminium 9-14 30 75,6 from 127,49 € 104,50 €/PZ
PZ
Order Quantity

Online orders are reserved for professional customers

Added to cart

of the item


Go to cart

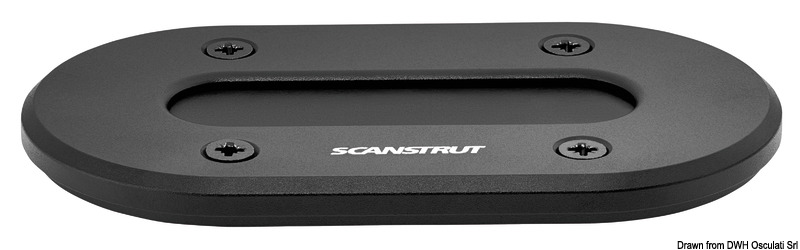

Low Profile alu noir stuffing box Ø up to 15 mm
14.177.15
Black anodized aluminium fino a 15 - - from 212,89 € 174,50 €/PZ
PZ
Order Quantity

Online orders are reserved for professional customers

Added to cart

of the item


Go to cart
